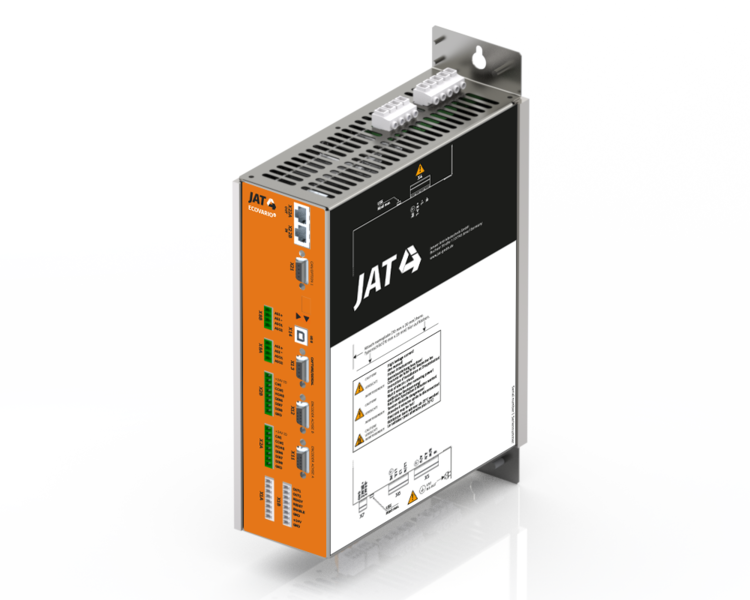

ECOVARIO® 616D, 2-axis Servo Amplifier, 3-phase supply, CANopen/EtherCAT
Technical specifications
| AC supply voltage | 400 VAC |
| DC link voltage | 560 VDC |
| Number of axes | 2 |
| Power category | 10 kW |
| Max. output current | 8 A |
Overview
ECOVARIO 616D is a dual-axis servo amplifier for coordinated motion on 3-phase mains. It connects to common PLC networks, supports incremental and absolute encoder systems with concurrent processing, and shortens commissioning with ECOSTUDIO engineering software. A Safe Torque Off safety function is available to meet functional safety requirements.
The power supply is 200 ... 528 VAC 3-phase.
Why it helps
- Two axes in one device reduce cabinet space and wiring
- Easy PLC integration via CANopen or EtherCAT, with options for PROFINET, PROFIBUS, RS232 and RS485
- Stable synchronization with incremental and absolute encoder feedback, encoder output for master-slave motion
- Faster commissioning using ECOSTUDIO parameter wizards, oscilloscope and device databases
- Implemented sequences can replace smaller controllers in suitable applications
- STO available to support safety compliance
Where it fits
- Multi-axis handling, feeding and indexing stations needing two coordinated axes
- Electronics inspection and measurement cells that benefit from reliable feedback and synchronized motion
- Laser, marking or cutting stations where fast commissioning and network flexibility matter
See the data sheet for detailed specifications and safety information. Request a custom system or ask engineering for an integration concept.
