Servo motors and positioning systems for precision manufacturing

All products



Complete motion solutions from individual servo motors to complex multi-axis gantries

JAT develops servo motors, linear actuators, and complete positioning systems for precision manufacturing. Our integrated approach combines rotary servo motors, linear axis systems, multi-axis gantries, and digital servo amplifiers into coordinated solutions for electronics assembly, laser optics, medical technology, and 3D printing. Each system includes matched drive components, motion control software, and engineering support for reliable integration. Standard platforms achieve ±1 μm path accuracy with up to 100 m/s² acceleration. Custom 5-axis air-bearing systems reach nanometre-level positioning in cleanroom environments. All products operate under ISO 9001 and ISO 14001, with ATEX and Functional Safety options available.

10-Axis Gantry system with Carbon-Fibre Axes

Multi-axis systems

XY, XYZ, and 5-axis gantries with ±1 μm path accuracy and up to 100 m/s² acceleration. Carbon-fibre beams reduce mass by 60 percent. Air-bearing stages deliver friction-free nanometre motion for optics and semiconductor applications.

Linear axis systems

Linear axis systems

Modular linear stages with ballscrew or linear motor drives. Travel ranges from 100 mm to 2000 mm. Integrated cable chains and position feedback simplify installation. Suitable for pick-and-place, inspection, and dispensing.

Rotary table systems

Rotary table systems

Backlash-free rotation for alignment, inspection, and small-part assembly. Hollow-shaft designs enable cable and fluid pass-through. Available with absolute encoders and brake options for vertical mounting.

Rotary servo motor

Rotary servo motors

ECOSPEED and ECOMPACT motor families with peak torque up to 29 Nm. UL and ATEX variants available. Compact M8 and M12 connector options reduce cabinet space and simplify wiring in tight envelopes.

Linear motor

Linear motors

Direct-drive linear motors eliminate backlash and mechanical wear. Suitable for high-speed scanning, laser marking, and dispensing. Forcer and magnet-track designs integrate with customer mechanics.

Scalable and modular servo amplifier ECOMODUL 118 for 8 axes.

Servo amplifiers

Modular multi-axis amplifiers and single-axis units with EtherCAT, PROFINET, and CANopen. Safe Torque Off and functional safety options ease regulatory qualification. Compact DIN-rail and panel-mount formats.

Servo compact drive

Compact servo drives

Integrated motor and amplifier units with M8 or M12 connectors. Space-saving designs for distributed motion control. Ideal for modular machine concepts and retrofit applications.

Stepper motor series 23S.

Stepper motors

Two-phase stepper motors for cost-sensitive positioning. Available in NEMA 17, 23, and 34 sizes. Suitable for simple point-to-point moves without closed-loop feedback.

Software

Software

ECOSUITE parameterization software for motor tuning, trajectory planning, and diagnostics. Includes function blocks for coordinated multi-axis motion and safety monitoring. Cables, fieldbus modules, and brake units available.

Technology functions

Technology functions

Integrated servo drive functions for positioning, velocity, and torque control. Includes electronic gearing, cam profiles, master–slave synchronization, and safe motion options. Scalable across single- and multi-axis applications.

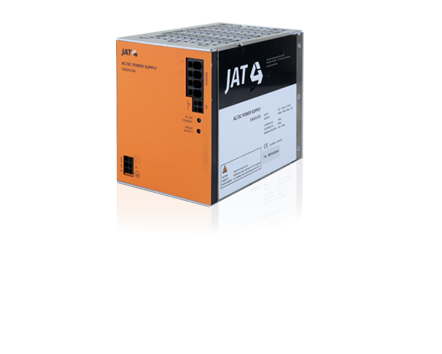

Accessories

Accessories

Original JAT accessories for servo drives and motion systems. Includes preassembled cables, connectors, brake resistors, fieldbus modules, and EMC components for reliable system integration and long-term serviceability.
