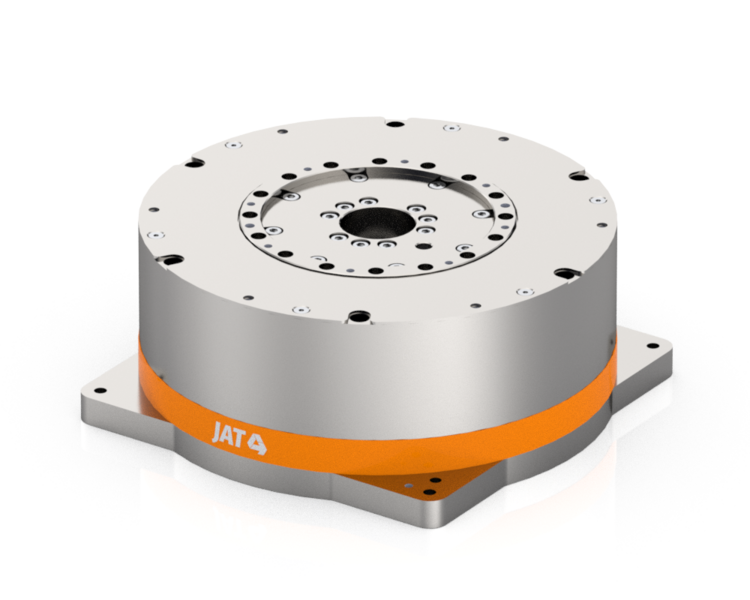

HRT‑210‑65 Large‑Bore Rotary Table
Technical specifications
| Maximum force | 127 Nm |
| Nominal moment | 33 Nm |
| Maximum speed | 300 rpm |
| Height | 100 mm |
| outer diameter | 240 mm |
| Hollow shaft diameter | 62 mm |
| Max. DC link voltage | 560 VDC |
Description
The HRT-210-65 is supplied as a fully wired, ready-to-install unit. A direct-drive torque motor generates 127 Nm peak torque while sustaining 300 rpm in continuous duty, all inside a 240 mm outer diameter frame and just 100 mm overall height. Its generous 62 mm hollow shaft lets you guide vacuum lines, fibre optics or power cables straight through the axis, keeping machine layouts tidy and reducing cable wear.
A precision rolling bearing and an incremental encoder are fitted as standard; absolute encoders, alternative bearings, custom cable exits and matched ECOVARIO 415D / 616A / 616D servo amplifiers can be selected to fit any control architecture.
