The new platform for your machines of tomorrowPremiere: New Servo amplifier ECOviva & commissioning software ECOmotionSuite
Welcome to the product launch at the SPS!
For the first time, we are presenting the new ECOviva servo amplifier and the ECOmotionSuite commissioning software at the SPS.
Exhibition Center Nuremberg
November 25–27, 2025
Hall 4, Booth 358
Our ECOviva team will be on site to answer all your questions - made up of developers and product managers, and definitely hard to miss!
Take part in the Commissioning Challenge at the SPS!
Visitors can get hands-on at the booth: during the Commissioning Challenge, they will commission a motor using the new ECOviva servo amplifier and ECOmotionSuite.
Every participant will receive a reward and an attractive prize awaits the fastest for the “Perfect Run.”
Feel free to contact your representative to arrange a meeting at the booth.
Why a new platform?

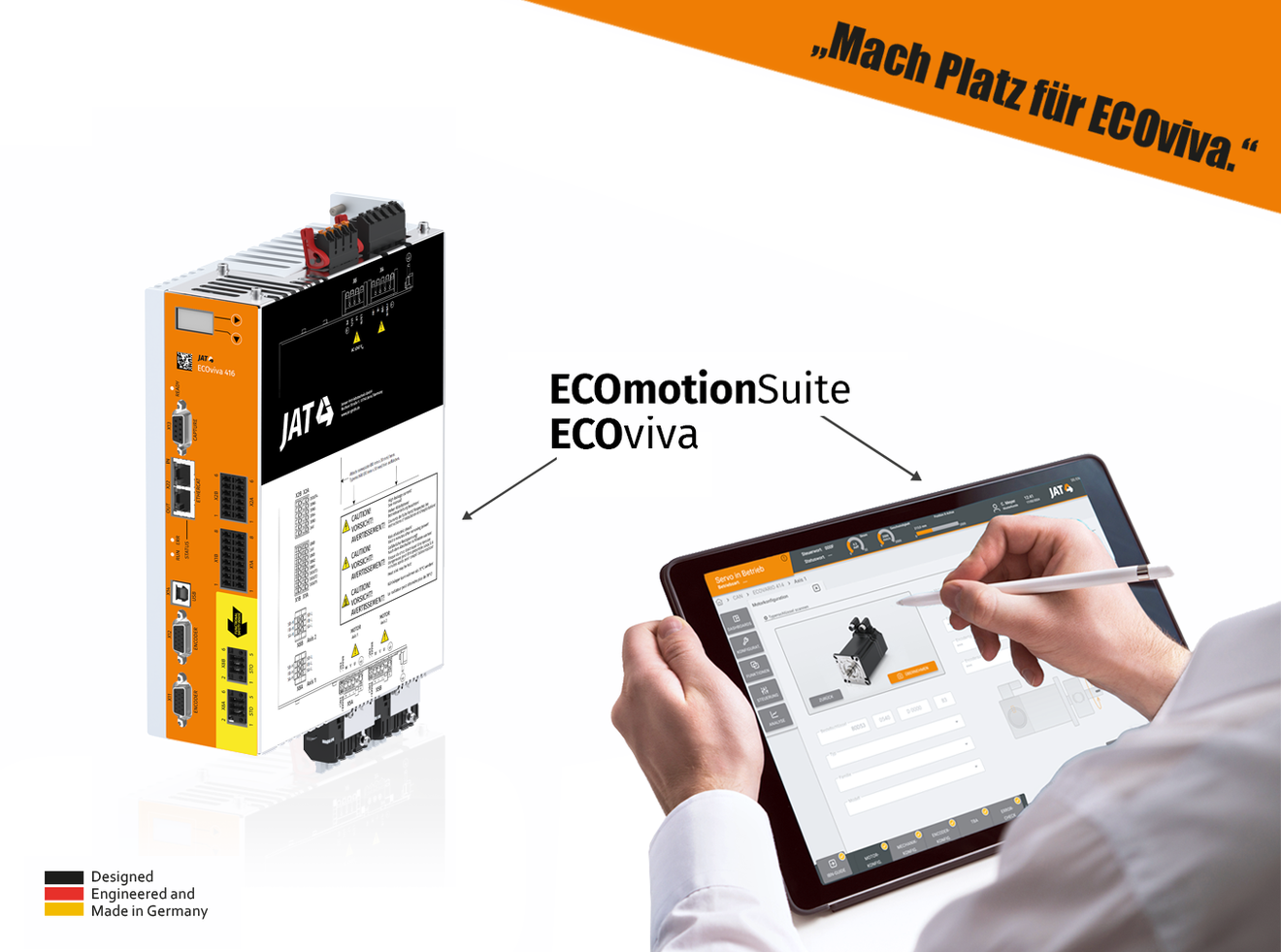

Servo drive and commissioning software developed together — to make machine commissioning faster, easier, and safer.
One platform. One experience.
- STO integrated
- Compatible with single-cable solution (Hiperface DSL)
- Responsive web interface
- Live view & diagnostics
Advantages
- Fast commissioning thanks to guided setup flow
- Integrated safety (STO included)
- Flexible connectivity (EtherCAT® standard, CANopen®, PROFINET® and Ethernet optional)
- Scalable platform - enables quick customization and further development for customers
- Transparent production with live view and dashboards
- Numerous features built in (digital filters for vibration damping, configurable jerk filters for optimized motion profiles, drive-internal sequences as a control substitute)

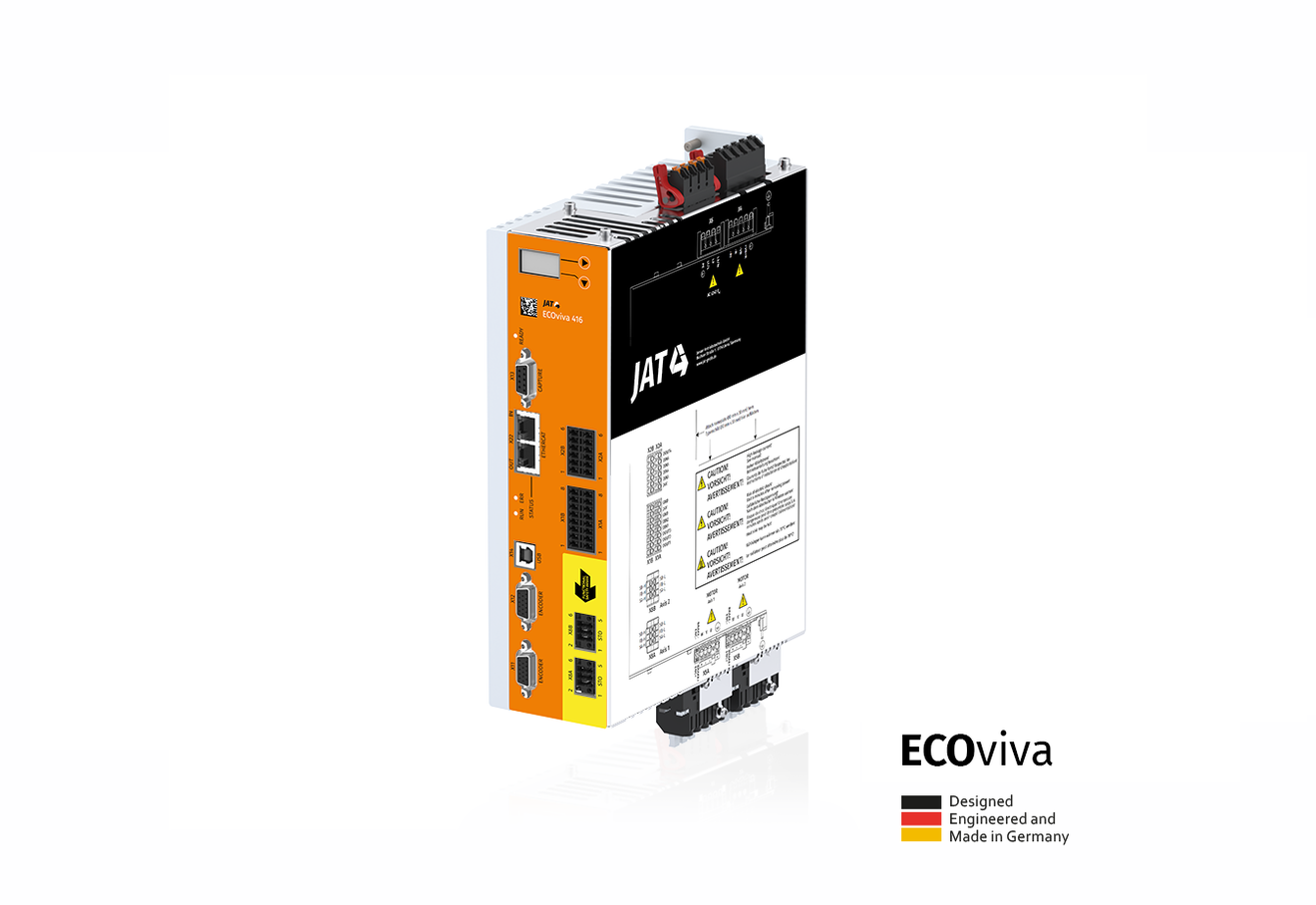

ECOviva 416D - 2 axes - 230V
- Power supply: 230 V (85–265 VAC)(single or three-phase)
- Continuous current: 8 A RMS per axis
- Peak current: 16 A RMS (5 s)
- Max. output power: 8000 W
- Rated power: 4000 W (3-phase) / 2000 W (1-phase)
- Fieldbus interfaces: EtherCAT® (standard), CANopen® (optional), PROFINET® and Ethernet in preparation
- Encoder options: Incremental RS422 & SINCOS, absolute encoder BISS® or HIPERFACE®, HIPERFACE® DSL (FS version)
- Simultaneous use of multiple feedback systems possible
- 6 digital inputs, 4 digital outputs per axis, 2 high-speed capture inputs (RS-422) per axis
- Integrated mains filter (Class C, up to 10 m motor cable)
- Dot-matrix OLED display with two control buttons for status indication
- Connection for external resistors
- Optional fan module
- Compact design (275 × 196 × 72 mm)
- Protection class IP20, operating temperature +5 … +40 °C · SIL 3 / PL e (safety card in preparation)
ECOmotionSuite - Commissioning software reimagined
- One app for configuration, diagnostics, monitoring, and programming
- Platform-independent web interface
- UX-first: guided, intuitive commissioning
- Live view & dashboard for transparent production
- Oscilloscope function for dynamic display of measurement data
- Supports multiple drive axes
- Fast results, even for non-experts
Technical overview
ECOviva |
| Axes / Voltage: 2 axes – 230 VAC (1-/3-phase) |
| Currents: 8 A RMS / 16 A max. per axis |
| Power: 8000 W max., 4000 W (3-phase), 2000 W (1-phase) |
| Fieldbus: EtherCAT® (standard), CANopen®, PROFINET® and Ethernet (optional) |
| Digital Inputs and Outputs: 6 digital INs & 4 digital OUTs per axis, 2 high-speed capture inputs per axis |
| Safety: Integrated STO |
ECOmotionSuite |
| User Interface: Platform-independent web interface |
| Functions: Setup, diagnostics, monitoring, programming |
| Database: Preconfigured JAT motors and axes for easy and fast selection |
| Features: Live view / dashboards |
| From 2026: UX-first guided commissioning |
| Good to know: Interface customizable to the machine builder’s corporate design |
Discover innovative motion solutions at SPS in Nuremberg
November 25–27, 2025
Hall 4, Booth 358
