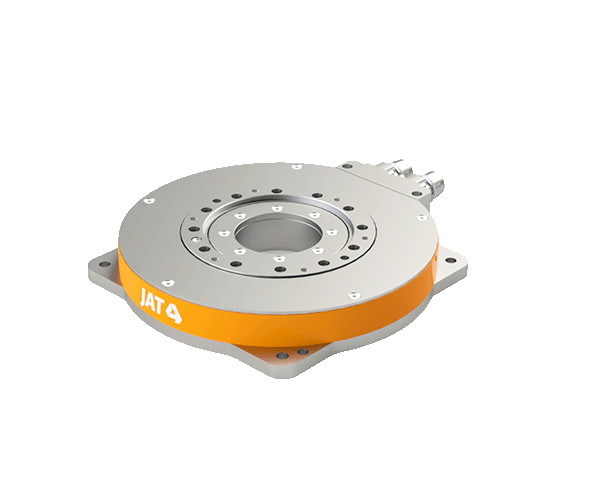

HRT-160-17 compact rotary table
Technical specifications
| Maximum force | 8.8 Nm |
| Nominal moment | 2.5 Nm |
| Maximum speed | 500 rpm |
| Height | 30 mm |
| outer diameter | 180 mm |
| Hollow shaft diameter | 50 mm |
| Max. DC link voltage | 325 VDC |
Description
The HRT-160-17 arrives as a completely wired, ready-to-connect unit. It integrates a direct-drive torque motor, precision cross-roller bearing and your choice of incremental or absolute encoder. Despite a low overall height of 30 mm, the stage delivers 8.8 Nm peak torque and maintains up to 500 rpm without gear backlash.
A fixed 50 mm hollow shaft routes vacuum lines, fibres or cables directly through the axis, reducing external drag chains and keeping machine layouts compact. Modular options cover alternative bearings, encoders, cable exits and matched servo amplifiers (EtherCAT, PROFINET, CANopen) to fit any control architecture.
Typical applications include PCB inspection turntables, laser micromachining heads, CMM rotation axes and high-speed pick-and-place modules where zero backlash and dynamic speed are mandatory.
