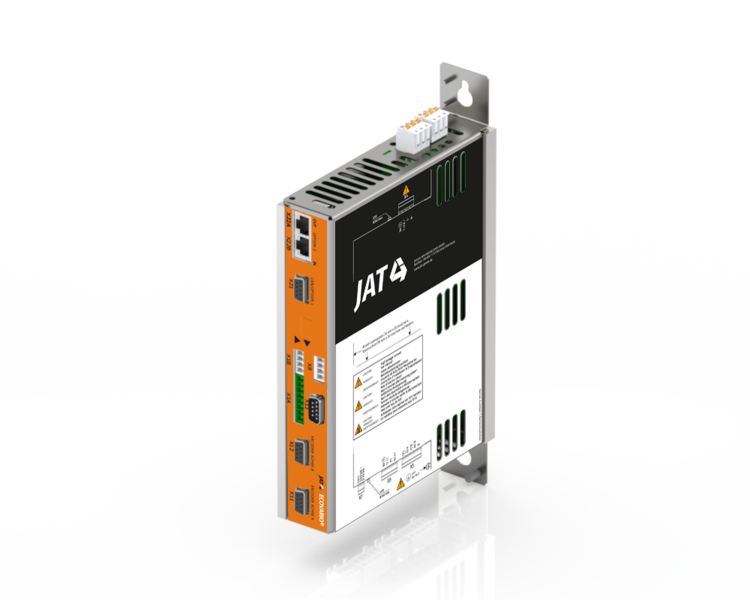

ECOVARIO® 114D, 2-Achs-Servoverstärker

Compact servo amplifier ECOVARIO 114D for 2 axes.

Technical specifications

DC supply voltage 60 VDC
DC link voltage 60 VDC
Number of axes 2
Power category 1.4 kW
Max. output current 14 A

Der ECOVARIO® 114D ist ein kompakter 2-Achs-Servoverstärker und verfügt über verschiedene Schnittstellen, wie z.B. EtherCAT, CANopen, PROFIBUS, PROFINET, RS232, RS485 oder Ethernet.
Über Drehmoment/Kraft, Geschwindigkeit und Position lassen sich 2- und 3-phasige bürstenlose Synchronmotoren und Synchron-Linearmotoren, EC-Motoren und Schrittmotoren regeln.
Die Versorgung erfolgt über 24 … 70 VDC.

Your request

Bus system / communication

Safety functions

The protection of your private data and herewith of your private sphere is a very important matter to us. We process personal data in accordance with the regulations of the European Data Protection Regulation (DS-GVO) and Federal Data Protection Act (BDSG). For more information please read our privacy statement.

Related Motors

Pulse compensation

Overview

Technology function under preparation
Specific control of drives to compensate for reaction force components
Increasing the dynamics of the movement specifications
Improved positioning accuracy

Transparent machine

Overview

Delivering of machine data
Integrated in the servo amplifiers
Recording of different status elements (axis stress, movability and energy balance)

Controller structure with observer

Overview

The system dynamics is increased
Improved control of interferences
More quiet motor running and better synchronization
Winding drive function icon with rotary movement and diagonal guide line

Winding drive

Overview

Traversing drive
Winding with synchronization of the spindle (winding axis) to the shifting drive
Rotary positioning function icon with circular platform and rotation arrows

Rotary table function

Overview

For positioning applications in which the travel path is not limited (e.g. rotary tables)
Relative movements can be carried out endlessly without the measuring system overflowing

Master/Slave

Overview

For the realization of an electronic gear / an electrical shaft
The slave moves with high accuracy synchronously to the master drive or to the position specification of the superordinate control
Coupling via the master encoder input, servo amplifier internally (multi-axis) or CAN

Position encoder monitoring

Overview

Monitoring of an external position encoder with the help of the internal velocity encoder (motor encoder)
This makes it possible to monitor the axis with regard to mechanical defects

Gateway function

Overview

A servo amplifier as a gateway, which offers access to all devices connected via the CAN bus (e.g. further servo amplifiers)
Interfaces: serial or Ethernet

Sensorless

Overview

In velocity control applications, motors without encoder can be operated with the characteristics of a servo motor
Reduced hardware effort

Level control

Overview

Automatically controlled vessel filling
Integrated into JAT servo amplifiers

Sine generator

Overview

Output of sine signals via a suitable target object
Frequency, amplitude and offset can be parameterised

PTC Splitter DDK27

Overview

Splitter to connect the PTC sensor to an external trip unit
For safe temperature monitoring according to ATEX directive 2014/34/EU
On the servo amplifier's end for 15-pin encoder connectors
PTC sensor's signals are led out by a separate D-Sub 9-pin connector

Switch-mode Power Supply SN60V/8A

Technical Data

Input voltage110 ... 240 VAC
Output current8 A
Output voltage60 VDC
Protection classIP20
Dimensions95 x 127 x 150 mm
Weightapprox. 1,6 kg

Power Supply SV24

Technical Data

Input voltage AC230 / 400 VAC
Output current5 A
Output voltage24 VDC
Protection classIP00
Dimensions105 x 110 x 133 mm
Weight4,4 kg

Power Supply SV60

Technical Data

Input voltage AC230 / 400 VAC
Output current5 A
Output voltage60 VDC
Protection classIP00
Dimensions130 x 120 x 173 mm
Weight6,1 kg

Power Supply SV24/60

Technical Data

Input voltage AC230 / 400 VAC
Output current2 / 5 A
Output voltage24 / 60 VDC
Protection classIP00
Dimensions120 x 130 x 175 mm
Weight7 kg
CertificateUL

Shield Set DDZ20

Overview

Shielding set for EMC-compliant cable routing on the servo amplifier

Shield Set DDZ21

Overview

Shielding set for EMC-compliant cable routing on the servo amplifier

Encoder Splitter DDK21

Overview

Splitter for connecting two encoders (1 x absolute encoder, 1 x incremental encoder) to an encoder interface

Encoder Splitter DDK22

Overview

Splitter for connecting two incremental encoders to an encoder interface

Mating Connector Set DDK10

Übersicht

Required mating connectors (Phoenix) for the servo amplifier

Mating Connector Set DDK11

Overview

Required mating connectors for the servo amplifier
