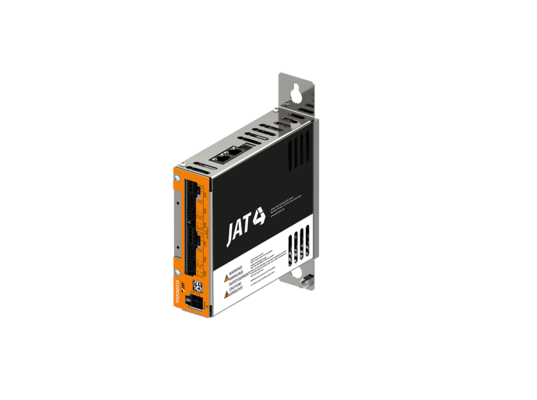

ECOMODUL 2-axis
Technical specifications
| DC supply voltage | 60 VDC |
| DC link voltage | 60 VDC |
| Number of axes | 2 |
| Power category | 1.1 kW |
| Max. output current | 14 A |
ECOMODUL: Servoverstärker/Schrittmotorverstärker
Technical Highlights
- Power supply: 20 … 60 VDC
- Output current: up to 14 A RMS per axis
- Motor control: 2- and 3-phase synchronous servo motors, DC motors, and stepper motors
- Safety functions: STO according to EN 61800-5-2 (SIL 3, PL e)
- Control speed: approx. 61 μs current control
- Interfaces: CANopen®, EtherCAT®, Micro-USB for parameterization
- I/O per axis: 2 digital inputs, 1 digital output, 1 analog input (expandable)
Typical Applications
- Machine tools
- Robotics and automation
- Packaging and conveyor systems
- Production systems with high axis density
Your Benefits at a Glance
- Compact design: Minimal space requirements in the control cabinet
- Cost-efficient: Reduced installation effort, internal sequences replace smaller controllers
- Fast commissioning: Intuitive parameterization with JAT engineering software ECOSTUDIO®
- Versatile applications: Control of servo motors, stepper motors, and DC motors
- “Sensorless Motion” option: Servo operation without encoder, saving energy and costs
