ECOSTEP® motors - cost-effective and flexible automation
Briefly explained - the ECOSTEP® principle

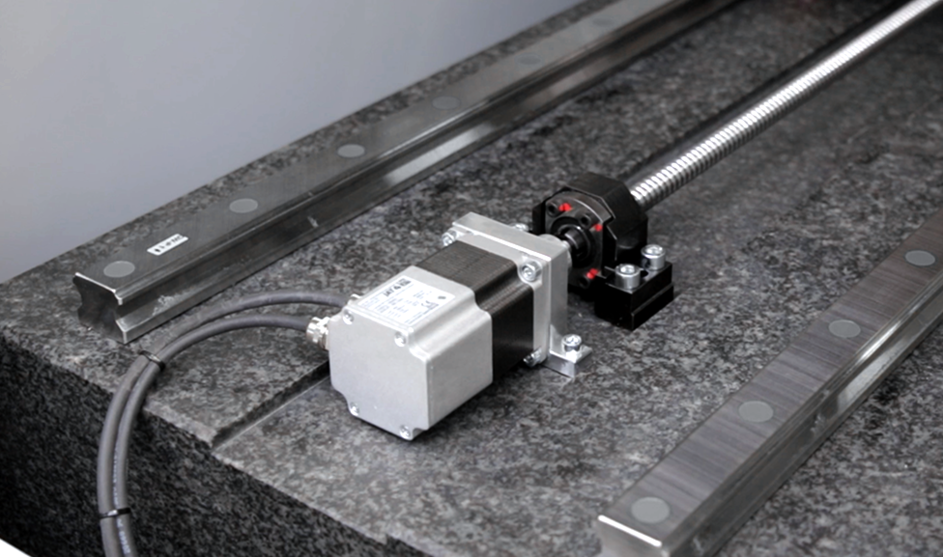

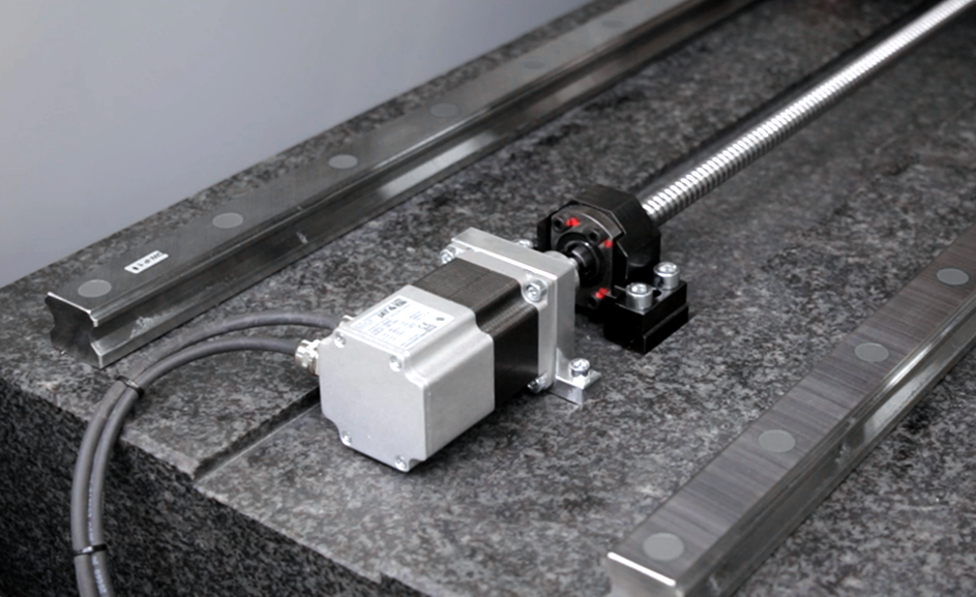

The term ECOSTEP® stands for a high-pole synchronous motor that is equipped with an encoder and is energised by a servo amplifier using sinusoidal commutation. ECOSTEP® drives are highly dynamic in the typical speed range up to 1000 rpm and are therefore ideal as direct drives. Eliminating the gearbox increases the positioning accuracy of the drive and improves efficiency.
The ECOSTEP® is also ideal for applications with continuous start/stop operation, as the power loss is lower compared to conventional AC servomotors with the same torque and size.
ECOSTEP® portfolio
JAT is continuously expanding the ECOSTEP® servo motor series. The motors with flange dimensions from NEMA17 to NEMA42 and peak torque up to 15 Nm are available with incremental encoders with resolutions of up to 256,000 inc/rev as well as with SINCOS and absolute encoders. Suitable servo drives, also as motor-integrated compact drives, are also available.
The customisation
We can adapt ECOSTEP® motors quickly and efficiently to customer requirements thanks to the extensive modular system and the numerous mechanical options such as holding brake, gear, key, shaft and various connectors.
Advantages of ECOSTEP® motors
- Compact and powerful: highly dynamic applications can be realised in the speed range up to 3000 rpm, very high peak torque in relation to the size max. 4 Nm
- Use as direct drive: No need for a gearbox, very high dynamics thanks to true servo operation
- Versatile: various mechanical options, optimum customisation to your application from a quantity of 1, matching servo drives with technology functions available
- Cost-effective: very good price/power density ratio at the operating point compared to AC servomotors
Our servo products
Our portfolio includes a wide variety of individual servo drives. We offer all of the necessary components for an optimum drive, from the linear axis with motor to the right servo amplifier through to the engineering tool used to parameterise your drive system. With our flexibility it is possible to provide you just the right servomotor and servo amplifier for your machine. We want to create additional value for you, optimise your machine and increase the productivity and cost-efficiency of the system. You will be accompanied in a holistic manner from conception through to the finished product. JAT looks at your entire system and offers you just the right electric motor, calibrated to the functions and use.
